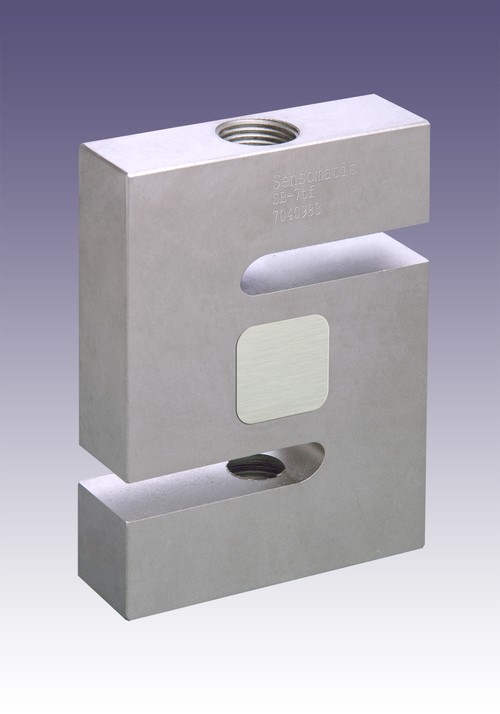

Sensor for Gym Equipments

Sensor for Gym Equipments
Sensor for Gym Equipments
Product Code : SB-6
Product Description

Since our rise, we are encouraged by our clients to manufacture, export and supply a quality assortment of Sensor for Gym Equipments. The offered sensor is widely used for analyzing the weighing procedures of the gym equipments. By utilizing supreme quality raw materials, this sensor is manufactured at our advanced production unit under the supervision of our adept professionals at our well-equipped manufacturing unit. We assure our clients the on-time delivery of Sensor for Gym Equipments at affordable prices.

Features:

  • Highly durable structure and requires low maintenance

  • Low Deflection & Creep

  • Standardized output for multi transducer Application

  • Excellent overload capability with noise-free operation

Specifications:

Capacity Range (inKgf) 50/100/150/200/250/350/450/ 500/750/900
Capacity Range (in tf) 1/1.1/1.35/1.5/1.8/2/2.5/3.5/5/7/10/11.5
Nominal Sensitivity (mV/V) 3+0.25%
Zero Signal Tolerance 0+2%
Input Resistance 350+5
Output Resistance 350+3
Recommended Excitation Voltage 10 VDC
Maximum Excitation Voltage 15 VDC
Linearity Deviation (as % of Full Scale) <+0.020
Repeatability (as % of Full Scale) <+0.020
Hysteresis (as % of Full Scale) <+0.020
Creep (as % of Full Scale) in 30 min <+0.020
Effect of Temperature on Zero( % / o C) +0.002
Effect of Temp. on Span (% / o C of Load) +0.001
Compensated Temperature Range -10 to + 40
Operating Temperature Range -20 to 70oC
Combined Error (as % of Full Scale) <+0.025 max
Isolation Resistance (@ 50 VDC) >1000 M
Max. Limit Force (as % of Full Scale) 150
Breaking Force (as % of Full Scale) 300
Lateral Load Limit (as % of Full Scale)
Protection Class IP 67
Material of Construction High Nickel Alloy Steel

Optional

  • Explosion proof Version

  • Suitable for Group I,IIA, IIC & meets Temperature Class T4
