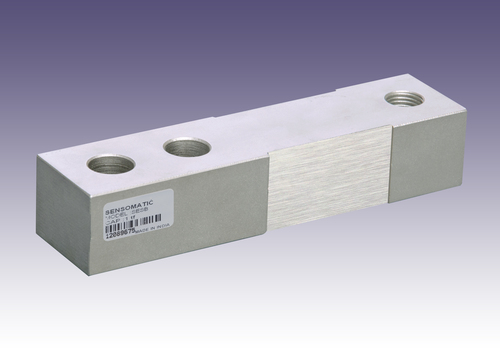

Load Cell for Bed Weighing

Load Cell for Bed Weighing
Load Cell for Bed Weighing
Product Code : SESB-9
Product Description

Being a well-established name in industry, we are engaged in manufacturing, exporting and supplying a wide array of Load Cell for Bed Weighing. The offered load cell is precisely manufactured using optimum quality raw materials and advanced techniques in accordance with international market standards. The offered load cell is commonly demanded for heavy weight load analysis such as vehicles or heavy metallic ore in various industries. Apart from this, our provided Load Cell for Bed Weighing is available in different specifications and can be customized as per specific need of our customers at highly competitive prices.

Features:

  • Simple to fit with adjustable huge bottom supports

  • High strength and dimensional accuracy

  • Standardized output for multiple transducer application

  • Corrosion and moisture proof coating is done

Specifications:

Capacity Range (in kgf) 50/100/200/250/300/500/750/900
Capacity Range (in tf) 1.1/1.5/1.8/2/2.25/2.5/3.5/5/7/9/11.5
Nominal Sensitivity (mV/V) 3+0.25%
Zero Signal Tolerance 0+2%
Input Resistance 350+5
Output Resistance 350+3
Recommended Excitation Voltage 10 VDC
Maximum Excitation Voltage 15 VDC
Linearity Deviation (as % of Full Scale) <+0.020
Repeatability (as % of Full Scale) <+0.020
Hysteresis (as % of Full Scale) <+0.020
Creep (as % of Full Scale) in 30 min <+0.020
Effect of Temperature on Zero( % / o C) +0.002
Effect of Temp. on Span (% / o C of Load) +0.001
Compensated Temperature Range -10 to + 40
Operating Temperature Range -20 to 70oC
Combined Error (as % of Full Scale) <+0.025 max
Isolation Resistance (@ 50 VDC) >1000 M
Max. Limit Force (as % of Full Scale) 150
Breaking Force (as % of Full Scale) 300
Lateral Load Limit (as % of Full Scale)
Protection Class IP 68
Material of Construction High Nickel Alloy Steel

Optional:

  • Explosion Proof version suitable for Group I,IIAVersion Suitable for Group I,IIA,IIB,IIC & meet Temperature class T4
