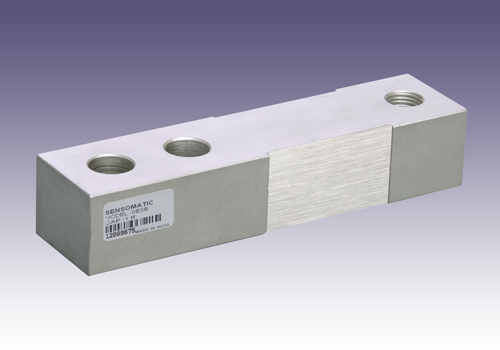

Load Beam Cell

Load Beam Cell
Load Beam Cell
Product Code : SESB-11
Product Description

With the assistance of our skilled and talented teammates, we have become proficient in manufacturing and exporting a wide variety of Beam Load Cell. All these cells are manufactured for hopper weighing, low profile floor scale and overhead track scale. Highly durable in quality, our cells are explosion proof. Our clients can have the range of Beam Load Cell from us at affordable rates within promised time limits.

Features:

  • In-built overload protection
  • Low deflection
  • Easy installation

Further Details:



Performance Data

Beam Load Cell (SESB-11)

Capacity Range (in kgf) 50/100/200/250/300/500/750/900
Capacity Range (in tf) 1.1/1.5/1.8/2/2.25/2.5/3.5/5/7/9/11.5
Nominal Sensitivity (mV/V) 3±0.25%
Zero Signal Tolerance 0±2%
Input Resistance 350±5
Output Resistance 350±3
Recommended Excitation Voltage 10 VDC
Maximum Excitation Voltage 15 VDC
Linearity Deviation (as % of Full Scale) <±0.020
Repeatability (as % of Full Scale) <±0.020
Hysteresis (as % of Full Scale) <±0.020
Creep (as % of Full Scale) in 30 min <±0.020
Effect of Temperature on Zero( % / o C) ±0.002
Effect of Temp. on Span (% / o C of Load) ±0.001
Compensated Temperature Range -10 to + 40c
Operating Temperature Range -20 to 70oC
Combined Error (as % of Full Scale) <±0.025 max
Isolation Resistance (@ 50 VDC) >1000 M
Max. Limit Force (as % of Full Scale) 150
Breaking Force (as % of Full Scale) 300
Lateral Load Limit (as % of Full Scale)
Protection Class IP 68
Material of Construction High Nickel Alloy Steel

Features

  • Low Profile design

  • Low Deflection & Creep

  • Excellent Overload Capability

  • Standardised output for Multi-Transducer Application


Optional

  • Explosion Proof version suitable for Group I,IIAVersion Suitable for Group I,IIA,IIB,IIC & meet Temperature class T4

Application

  • Low Profile Floor Scale, Tank/Hopper Weighing,Overhead Track Scale, Dynamic Weighing
