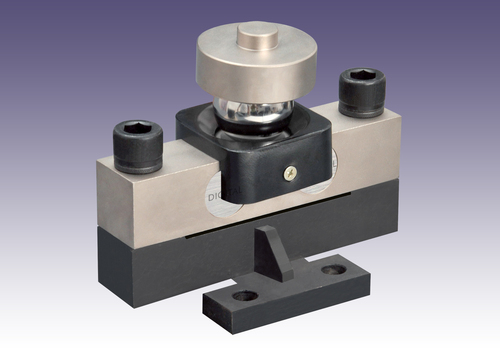

Double Ended Shear Beam Ball type Load Cell

Double Ended Shear Beam Ball type Load Cell
Double Ended Shear Beam Ball type Load Cell
Product Code : DESB-BL
Product Description

Since our inception in the year 2004, we have been engaged in manufacturing, exporting and supplying a wide range of Double Ended Shear Beam Ball type Load Cell. The offered load cell is manufactured using quality tested components by our dexterous professionals with the aid of pioneering techniques. This cell is used for tension measurements and tensile testing in various weighing systems. In addition, the provided Double Ended Shear Beam Ball type Load Cell can be bought from us in bulk at market leading prices.

Key Points:

  • Robust construction
  • High load bearing capacity
  • Defect free
  • Corrosion resistance

Performance Data

Double Ended Shear Beam Ball type Load Cell (DESB-BL)

Capacity Range (in kgf)
Capacity Range (in tf) 10/20/30
Nominal Sensitivity (mV/V) 2±0.25%
Zero Signal Tolerance 0±2%
Input Resistance 700±5
Output Resistance 700±3
Recommended Excitation Voltage 10 VDC
Maximum Excitation Voltage 25 VDC
Linearity Deviation (as % of Full Scale) <±0.020
Repeatability (as % of Full Scale) <±0.020
Hysteresis (as % of Full Scale) <±0.020
Creep (as % of Full Scale) in 30 min <±0.020
Effect of Temperature on Zero( % / o C) ±0.002
Effect of Temp. on Span (% / o C of Load) ±0.001
Compensated Temperature Range -10 to + 40
Operating Temperature Range -20 to 70ºC
Combined Error (as % of Full Scale) ±0.03 max
Isolation Resistance (@ 50 VDC) >1000 M
Max. Limit Force (as % of Full Scale) 150
Breaking Force (as % of Full Scale) 300
Lateral Load Limit (as % of Full Scale)
Protection Class IP 68
Material of Construction High Nickel Alloy Steel



Features

  • In-built Lightning Protection

  • Low Deflection & Creep

  • Top cup & Retainer cup Machined

  • Supplied with complete mounting Accessories


Optional

  • Explosion Proof

  • Version Suitable for Group I,IIA,IIB,IIC & meet Temperature class T4
