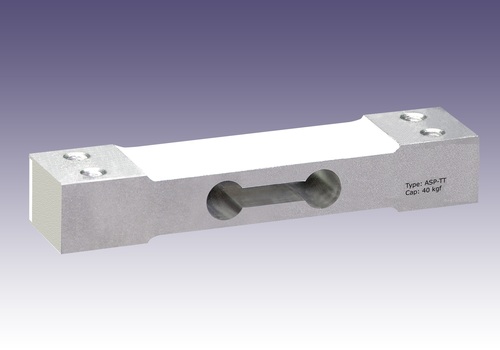

Aluminum Small Load Cell

Aluminum Small Load Cell
Aluminum Small Load Cell
Product Code : ASP-TT1
Product Description

Aluminum Small Load Cell

For more than a decade, we are engaged in offering quality assortment of Aluminum Small Load Cell. The provided load cell is manufactured by our adroit team of professionals by utilizing superior quality aluminum with the help of pioneering technology in accordance with the quality standards. Our offered load cell is used in medical analysis like table top scaling and baby weighing scaling. This Aluminum Small Load Cell is available in various specifications in order to meet the specific requirements of our clients.

Features:

  • High strength structure with robust design

  • Portable and easy to operate due to its comparative size

  • Application specific design

  • Excellent overload capability

Specifications:

Capacity Range (in kgf) 3/6/10/20/30/40/80
Nominal Sensitivity (mV/V) 2+10%
Zero Signal Tolerance 0 + 3%
Input Resistance 415+15
Output Resistance 350 + 3
Recommended Excitation Voltage 10 VDC
Maximum Excitation Voltage 15 VDC
Linearity Deviation (as % of Full Scale) <+ 0.017
Repeatability (as % of Full Scale) <+ 0.017
Hysteresis (as % of Full Scale) <+ 0.017
Creep (as % of Full Scale) in 30 min < + 0.020
Effect of Temperature on Zero( % / o C) + 0.002
Effect of Temp. on Span (% / o C of Load) + 0.001
Compensated Temperature Range -10 to + 40oC
Operating Temperature Range -20 to +70oC
Combined Error (as % of Full Scale) <+ 0.023 max
Isolation Resistance (@ 50 VDC) > 1000 M
Max. Limit Force (as % of Full Scale) 150
Breaking Force (as % of Full Scale) 300
Lateral Load Limit (as % of Full Scale)
Protection Class IP 65
Material of Construction Aluminum Alloy
